L-TYPE 3545/6404

  • L-Type 3545/6404

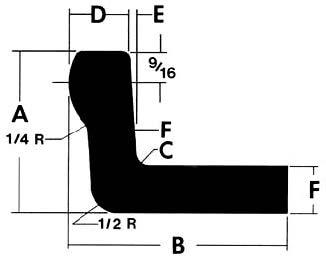

A-Arc Height x B-Overall Length x C-Radius x D-Thickness x E-Taper x F-Tail Thickness to Compound. Identify seal as a fully molded or extruded profile. Fully molded seals have a much tighter dimensional tolerance than extruded profiles. Include material requirements. Specify cladding thickness and degree of coverage as required.
ABCDEF
3" 4-5/16" 1/4" 1-3/16" 1/8" 7/8"
3" 4-3/4" 1/4" 1-3/16" 1/8" 7/8"
3" 4-3/4" 9/32" 1-7/32" 3/4" 7/8"
XX XX XX XX XX XX
XX = Custom/Required Size
