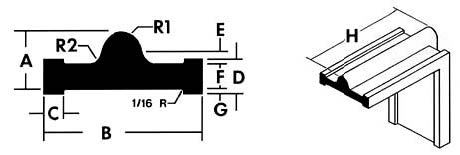

CENTER DOME SEAL — VERTICAL 90⁰ CORNER
A-Height x B-Width x C-Block Width x D-Block Height x E-Offset x F-Body Thickness x G-Recess x H-Legs Length x R1-Dome x R2-Radius to Compound.
Identify as a fully molded seal. Include material requirements. Specify cladding thickness and degree of coverage as required.
| A | B | C | D | E | F | G | H | R1 | R2 |
|---|
| 1-3/4" |
5-5/8" |
5/8" |
1" |
5/16" |
1/2" |
1/4" |
16" |
11/16" |
9/16" |
| 1-3/4" |
6-1/4" |
7/16" |
3/4" |
1/8" |
9/16" |
3/32" |
16" |
7/8" |
3/8" |
| 1-15/16" |
5-5/8" |
5/8" |
1-3/16" |
5/16" |
11/16" |
1/4" |
16" |
11/16" |
9/16" |
| XX |
XX |
XX |
XX |
XX |
XX |
XX |
XX |
XX |
XX |
XX = Custom/Required Size
