VERTICAL 90⁰ CORNER

  • Vertical 90⁰ Corner

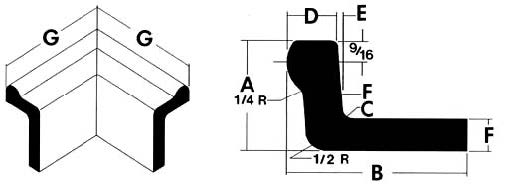

A-Arc Height x B-Overall Length x C-Radius x D-Thickness x E-Taper x F-Tail Thickness x G-Leg Length to Compound. Identify seal as a fully molded or extruded profile. Fully molded seals have a much tighter dimensional tolerance than extruded profiles. Include material requirements. Specify cladding thickness and degree of coverage as required.
ABCDEFG
3" 4-15/16" 1/4" 1-3/16" 1/8" 7/8" 15"
3" 4-3/4" 1/4" 1-3/16" 1/8" 7/8" 15"
3" 4-3/4" 9/32" 1-7/32" 3/4" 7/8" 15"
XX XX XX XX XX XX XX
XX = Custom/Required Size
